Product Overview

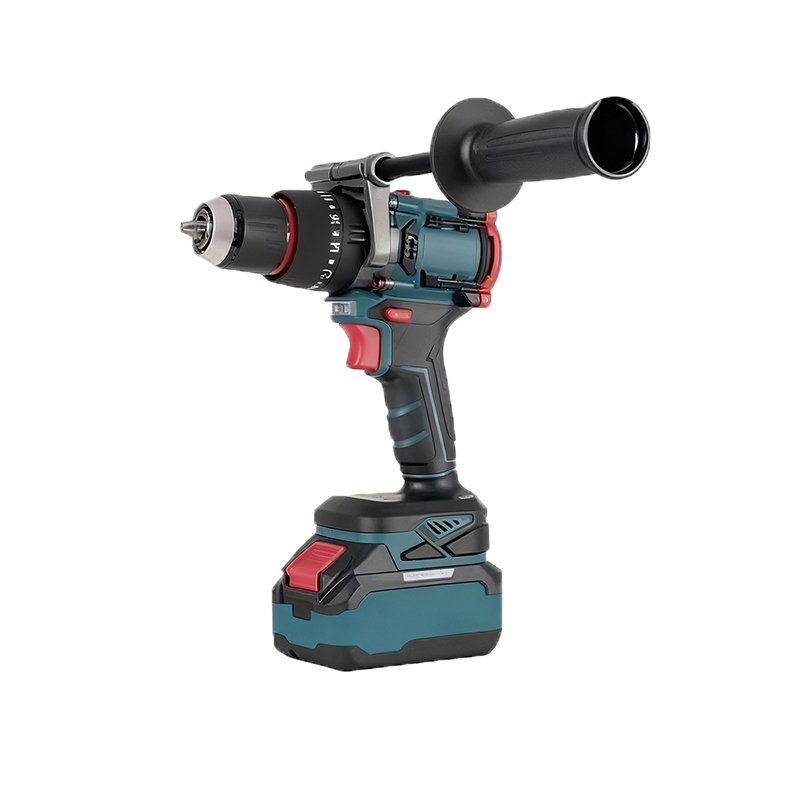

Built for extreme job-site demands, the JZ1320-40 13mm 3-Function Brushless Impact Drill combines industrial-grade torque with precision control. Powered by a high-efficiency brushless motor and a hardened dual-speed gearbox, it delivers a massive 150N.m max torque and variable no-load speeds of 0-500 / 0-2100 r/min. The heavy-duty 13mm metal chuck, triple-mode selector, and included auxiliary handle ensure maximum stability and safety when drilling into concrete, structural steel, or driving large fasteners. Ideal for global distributors, contractors, and B2B buyers seeking reliable OEM/ODM cordless power tools.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | JZ1320-40 |
| Max Chuck Capacity | 13mm |
| No-Load Speed | 0-500 r/min / 0-2100 r/min |
| Max Torque | 150 N.m |
| Motor Type | Brushless DC |
| Functions | Drilling / Hammer Drilling / Screwdriving |
| Handle | Ergonomic Main Grip + Detachable Auxiliary Handle |
| Voltage / Battery | Customizable (18V/20V/21V Max) |
Key Features
150N.m Industrial Torque: Effortlessly penetrates reinforced concrete, thick steel & hardwood; drives long lag bolts without stalling.
3-Mode Versatility: Flat drill, hammer drill & impact driver modes for seamless multi-material switching.
Brushless Powertrain: 35% longer runtime, zero carbon brush maintenance, cooler operation & extended motor lifespan.
2-Speed Transmission: Low gear (0-500 r/min) for high-torque fastening; High gear (0-2100 r/min) for rapid clean drilling.
13mm Heavy-Duty Chuck: All-metal keyless design with 1.5–13mm clamping range and high concentricity to prevent bit wobble.
Enhanced Control & Safety: Detachable auxiliary handle absorbs vibration & improves grip stability during high-torque hammer drilling.
Job-Site Ready: Anti-slip overmold, LED work light, belt clip & battery fuel gauge for all-day productivity.
Why Choose Us?
Factory-Direct Supply: 10+ years in power tool manufacturing with lean production & competitive FOB pricing.
Export-Grade Compliance: CE, RoHS, FCC, UKCA certified. 100% pre-shipment torque calibration & load aging test.
Flexible OEM/ODM: Custom branding, colorways, packaging, voltage platforms & battery adapter development.
Global Trade Support: FOB/CIF/DDP terms. Samples in 3-5 days, bulk production in 15-25 days.
Reliable After-Sales: 12-month tool warranty, 6-month battery warranty, spare parts kit & 24/7 technical support.
FAQ
Q1: What is the MOQ for wholesale or OEM orders?
A: Neutral packaging starts at 50 pcs. Custom OEM/ODM orders require 200 pcs. Test samples are available.
Q2: Is this sold as a bare tool or complete kit?
A: Both options available. Kits include 2× high-capacity Li-ion batteries, fast charger, bit set, auxiliary handle & BMC case.
Q3: Can you match our existing battery platform?
A: Yes. We support cross-brand battery adapter development and custom voltage configurations upon request.
Q4: How do you guarantee quality for bulk shipments?
A: Every unit passes torque calibration, 30-min load aging, and 1.2m drop testing. QC reports & video inspections provided.
Q5: What are your payment & shipping terms?
A: T/T (30% deposit, 70% before shipment), L/C, or Alibaba Trade Assurance. Shipped via sea, air, or express worldwide.
Ready to scale your heavy-duty tool lineup? Contact us for the latest catalog, FOB pricing, and free samples.
