Product Overview
The W07056 (Product Code TKT6-16 / TK-073) is a 16-piece metric socket set built on a 12.5 mm (1/2″) heavy-duty drive system — a focused kit centered on core functionality, designed for automotive repair, tire changing, machinery maintenance and in-vehicle emergency use where medium to high torque is required.

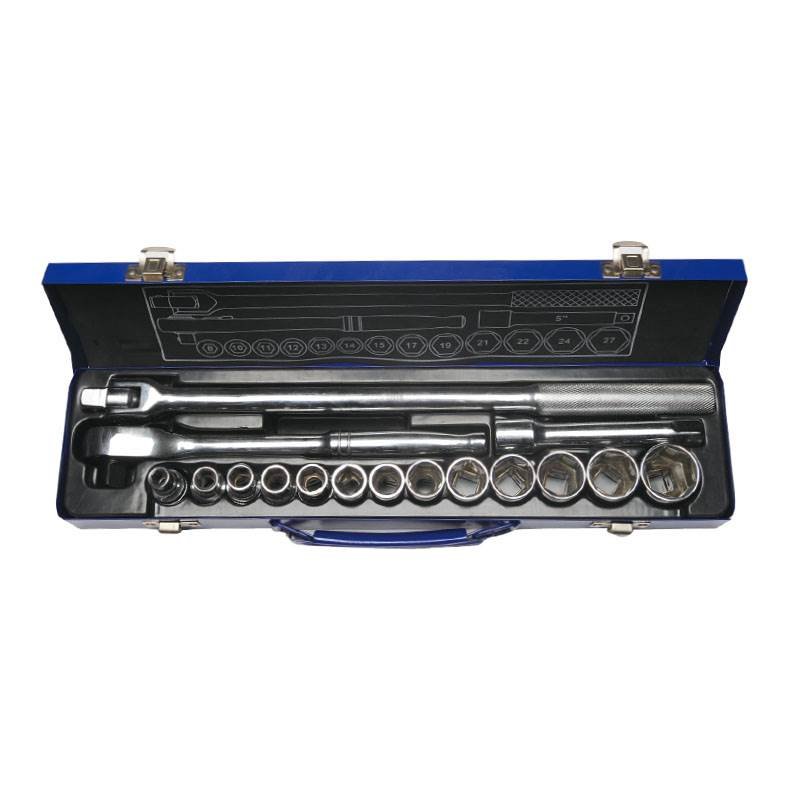

The set includes 13 hex metric sockets (8-27 mm), 1 quick-release ratchet wrench, 1 × 375 mm flex handle and 1 × 125 mm extension bar.
Key advantage: The 375 mm flex handle (pivoting breaker bar) is the standout component. Its head pivots through 180°, allowing you to align precisely with a fastener from any angle — including sideways, angled or space-restricted positions where a fixed handle simply cannot reach. Combined with a 375 mm lever arm and solid one-piece construction, it delivers powerful breaking torque that frees seized bolts and wheel nuts with ease — a flexibility advantage a standard L-handle cannot match.
Once loose, switch to the quick-release ratchet for fast removal, ejecting sockets at the touch of a button. This pairing speeds up the job while keeping excessive torque away from the ratchet mechanism, significantly extending tool life.
The 13 sockets cover the high-frequency 8-27 mm range, handling most fasteners on cars, motorcycles and machinery. All are forged from premium chrome-vanadium (CR-V) steel and hardened, with a 6-point profile that prevents slipping and rounding.
3.40 kg per set, 4 sets per carton — compact and easy to carry.
Set Contents (16 Pieces)
| Category | Qty | Specifications |
|---|---|---|
| Hex (6-Point) Metric Sockets | 13 pcs | 8, 10, 11, 12, 13, 14, 15, 17, 19, 21, 22, 24, 27 mm |
| Quick-Release Ratchet Wrench | 1 pc | 1/2″ drive, bi-directional + one-touch release |
| Extension Bar | 1 pc | 125 mm |
| Flex Handle (Breaker Bar) | 1 pc | 375 mm, 180° pivoting head |
Specifications
| Item | Detail |
|---|---|
| Item No. | W07056 |
| Product Code | TKT6-16 (TK-073) |
| Pieces | 16 PCS |
| Drive Size | 12.5 mm (1/2″) square drive |
| Socket Range | 8-27 mm (13 pcs) |
| Socket Profile | 6-Point hexagon |
| Flex Handle Length | 375 mm (180° pivoting head) |
| Extension Length | 125 mm |
| Material | Premium chrome-vanadium (CR-V) steel, forged + hardened |
| Finish | Mirror polished / chrome plated, anti-rust |
| Carton Qty | 4 sets / carton |
| Weight | 3.40 kg / set |
The 375 mm Flex Handle — This Kit’s Core Value
| Feature | Description | User Benefit |
|---|---|---|
| 180° Pivoting Head | Head swings freely to any angle relative to the bar | Precise alignment and leverage in sideways, angled or confined positions |
| 375 mm Long Lever | Extended arm for maximum leverage efficiency | Frees seized bolts and wheel nuts effortlessly |
| Solid One-Piece Build | No internal mechanism, pure mechanical strength | Torque capacity far beyond any ratchet |
| Doubles as a T-Handle | Pivot the head to 90° for a T-bar configuration | Fast spinning in and out — two tools in one |
Key Features
- 375 mm Flex Handle — A Standout Inclusion — 180° pivot plus long lever for torque and angled access
- 13 High-Frequency Sockets 8-27 mm — Covers common fasteners on cars, bikes and machinery
- Quick-Release Ratchet — Button ejection for single-handed socket changes
- Dual-Handle Design Extends Tool Life — Break loose with the flex bar, spin with the ratchet
- Heavy-Duty 1/2″ Drive — Thick square drive handles wheel bolts and high-load fastening
- 6-Point Socket Grip — Larger contact area prevents slipping and rounded nut corners
- 125 mm Extension Bar — Reaches recessed and deep-set fasteners
- Forged CR-V Steel — Hardened for strength, torsion resistance and long service life
- Mirror-Polished Finish — Wipes clean of grease, stays bright over years of use
- Compact 3.40 kg — Ideal for in-car storage and mobile service work
Applications
- Automotive repair and servicing — Wheel bolts, suspension, engine mounts, gearboxes
- Tire shops and quick-fit chains — Efficient breaking torque, standard kit for wheel changes
- Vehicle emergency kit — Focused contents and compact size, ideal for roadside tire changes
- Truck and commercial vehicle repair — Large fasteners where 1/2″ drive is standard
- Construction and agricultural machinery — Excavators, loaders, tractors
- Motorcycle and large-displacement bike repair — Cylinder heads, frames, suspension bolts
- Industrial equipment assembly and maintenance — Pumps, valves, gearboxes, production lines
- Mobile repair technicians — Light to carry with full core-function coverage
- Vocational schools and training centers — Foundation teaching kit
- Hardware retail, automotive channels and promotional gifts
Why Choose Us
- 20+ Years of Manufacturing with Full In-House Control — Our own forging, heat treatment, polishing and assembly lines. Sockets are forged from CR-V steel and hardened to HRC 44-52, produced to DIN 3120 / ISO 1174 standards, with mill certificates and SGS reports available.
- The 375 mm Flex Handle Sets This Kit Apart — Compared with same-price kits offering only a ratchet or fixed L-handle, the 180° pivoting head plus long lever arm solves the very real problem of “I can’t get leverage at that angle.” It delivers both breaking power and flexibility — a highly persuasive selling point for distributors.
- Genuine Heavy-Duty 1/2″ Construction — The square drive and ratchet mechanism are engineered for heavy-duty service, with torque-to-failure testing confirming real capacity far above rated requirements. The ratchet is validated by 10,000-cycle fatigue testing, and the flex handle pivot is tested through repeated articulation to ensure it stays tight over years of use.
- Complete OEM / ODM Service with Flexible Configuration — Custom logo laser engraving or stamping, socket size and profile combinations, case colors and layout, color box printing and multilingual manuals. Piece counts can be adapted to your market (16 / 21 / 32 / 46-piece sets in metric, SAE or mixed).
- Strict QC, Reliable Lead Times and Full After-Sales — ISO 9001 system with 100% completeness inspection, hardness sampling, torque-to-failure testing and salt-spray testing (≥24h). Stock orders ship in 15-20 days, custom orders in 35-50 days. Exported to 60+ countries with free replacement for missing or damaged items.
FAQ
Q1: What is your MOQ and lead time?
A: 1 carton (4 sets) for stock items, shipped within 15-20 days. For custom logo and tool case orders, MOQ is 300 sets with a lead time of about 35-50 days. We accept T/T (30% deposit + 70% balance), L/C at sight, Trade Assurance, Western Union and PayPal (small sample orders).
Q2: What is a “375 mm flex handle”, and how does it differ from a standard L-handle?
A: A flex handle has a hinged head that pivots freely through 180° relative to the bar — the fundamental difference from a fixed-angle L-handle.
Three key advantages:
① Alignment at any angle — pivot the head to find the ideal working position for sideways, angled or space-restricted bolts, where a standard L-handle often cannot reach or gain leverage;
② 375 mm lever arm with solid construction — high leverage efficiency and torque capacity, freeing seized bolts and wheel nuts in a single pull;
③ Two tools in one — pivot the head to 90° and it becomes a T-handle for fast spinning.
This is the most differentiated feature of the kit at its price point.
Q3: Why include a flex handle when the kit already has a ratchet? How are they used together?
A: They serve distinct roles.
The flex handle is solid with a long lever arm, giving torque capacity far beyond any ratchet, and is intended specifically for breaking loose seized or heavily torqued bolts at any working angle.
The quick-release ratchet contains a precision gear-and-pawl mechanism ideal for fast spinning and small-arc work in confined spaces, but sustained over-torque wears the teeth and eventually causes slipping.
Recommended workflow: ① Break loose with the flex handle → ② Spin out with the ratchet → ③ Refit with the ratchet → ④ Confirm critical fasteners with a torque wrench. This keeps work efficient while protecting the ratchet and significantly extending tool life.
Q4: What sizes are included, and is 8-27 mm enough coverage?
A: The set contains 13 hex sockets (8, 10, 11, 12, 13, 14, 15, 17, 19, 21, 22, 24, 27 mm), 1 quick-release ratchet wrench, 1 × 375 mm flex handle and 1 × 125 mm extension bar.
Every size chosen is a high-frequency working size in automotive and mechanical maintenance — covering engine bolts, gearbox bolts, suspension components and wheel nuts (typically 17/19/21 mm), making this an ideal combination for a focused kit. If you need additional sizes such as 9/16/18/20/23 mm, or want to add bi-hex sockets, spark plug sockets or universal joints, we can customize the configuration.
Q5: Can the logo, contents and packaging be customized? Is it suitable for in-car use or gift channels?
A: Absolutely. We offer laser engraving or steel stamping of your logo on the sockets, handles and case, plus custom handle and case colors. Socket combinations can be freely adjusted for your market (metric, SAE or mixed, more or fewer pieces, added spark plug sockets or universal joints). Packaging options include blow-molded case, aluminum case, metal tool box, canvas roll and EVA-lined gift box, with custom color box printing, multilingual manuals, barcodes and hang tags.
At just 3.40 kg and compact in size, yet fully capable of roadside tire changes, this kit works exceptionally well as an in-car tool set and as a promotional or client appreciation gift for car brands, motor oil brands and insurance companies — genuinely useful, with years of brand exposure. Samples can be sent first, with the sample charge refunded against a bulk order.
