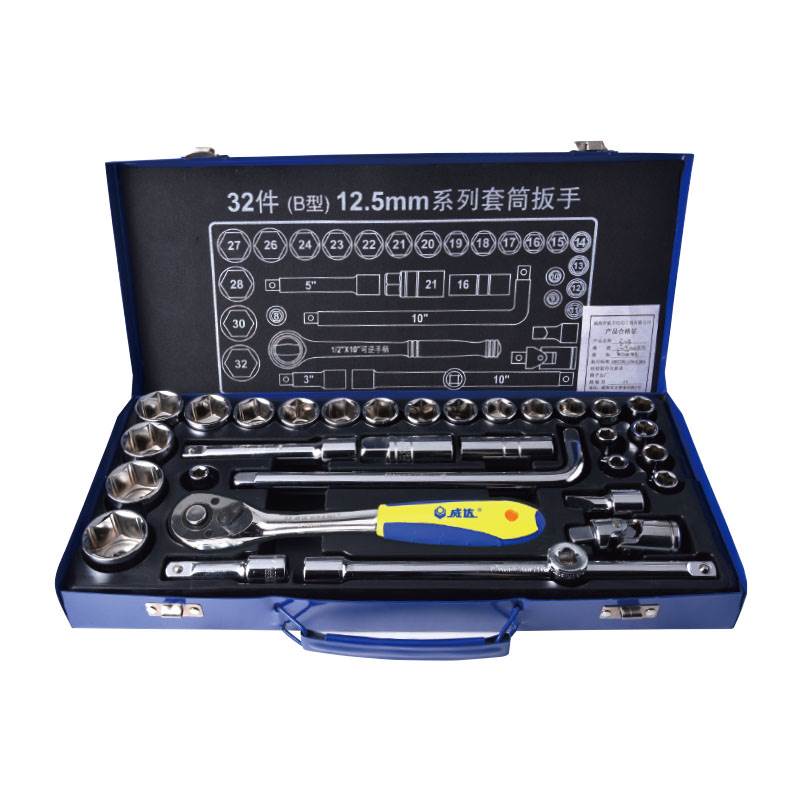

32-Piece 12.5mm Metric Socket Set with Ratchet Kit

Product Overview

The W07021 (Product Code TKT7-32B / TK-088) is a 32-piece metric socket set built on a 12.5 mm (1/2″) heavy-duty drive system, designed for automotive repair, truck and construction equipment servicing, and industrial maintenance — wherever medium to high torque is required.

The 1/2″ drive is the workhorse standard in automotive and industrial workshops. Its substantially thicker square drive delivers far greater torque capacity than a 3/8″ system, making light work of wheel bolts, suspension components, engine mounts and gearbox fasteners.

The set includes 22 hex metric sockets (8-32 mm) covering the full size range without gaps, 2 spark plug sockets (16 / 21 mm), 1 quick-release ratchet wrench, 3 extension bars (75 / 125 / 250 mm), 1 universal joint, 1 L-type handle, 1 × 52 mm screwdriver bit and 1 adapter (10 mm F × 12.5 mm M) — a complete solution for deep-recess, angled, confined, high-torque and cross-drive applications.

Key highlights: The adapter (3/8″ female × 1/2″ male) lets you run 3/8″ sockets on the 1/2″ drive, dramatically extending compatibility. The 250 mm long extension reaches deep into engine bays and under vehicles. The L-type handle provides high breaking torque while protecting the ratchet mechanism.

Sockets are forged from premium chrome-vanadium (CR-V) steel and hardened, with 6-point profiles that grip flat on nut faces to prevent slipping and rounding. At 5.36 kg per set with 4 sets per carton, the kit offers genuine professional substance — an excellent SKU for automotive channels, industrial buyers, hardware wholesalers and premium gift programs.

Set Contents (32 Pieces)

Specifications

Key Features

• Heavy-Duty 1/2″ Drive System — Thick square drive handles wheel bolts and high-load fastening
• 22 Sockets from 8-32 mm — Full size range with no gaps, one kit for many applications
• 2 Dedicated Spark Plug Sockets — 16/21 mm with rubber inserts to hold plugs safely
• Cross-Drive Adapter — Run 3/8″ sockets on the 1/2″ drive for far greater compatibility
• 250 mm Long Extension — Reaches deep engine bay and underbody fasteners
• Three Extension Lengths — 75/125/250 mm used singly or combined for any reach
• Quick-Release Ratchet — Button ejection for single-handed socket changes
• Universal Joint — Applies torque at an angle, around obstructions
• L-Type Handle for Breaking Torque — Frees seized bolts while protecting the ratchet
• 6-Point Socket Grip — Larger contact area prevents slipping and rounded nut corners
• Forged CR-V Steel — Hardened for strength, torsion resistance and long service life

Applications

• Automotive repair and servicing — Wheel bolts, suspension, engine mounts, gearboxes
• Truck and commercial vehicle repair — Large fasteners where 1/2″ drive is standard
• Construction and agricultural machinery — Excavators, loaders, tractors
• Motorcycle and large-displacement bike repair — Spark plugs, cylinder heads, frame bolts
• Industrial equipment assembly and maintenance — Pumps, valves, gearboxes, production lines
• Generator sets and marine engines — Large fastener work
• Service chains and tire shops — Standard kit for tire changes and routine servicing
• Vocational schools and training centers — Standard teaching kit
• Industrial procurement and hardware wholesale — High-content, high-value best seller
• Premium gift channels — Client appreciation gifts for car and motor oil brands

Why Choose Us



1. 20+ Years of Manufacturing with Full In-House Control — Our own forging, heat treatment, polishing and assembly lines. Sockets are forged from CR-V steel and hardened to HRC 44-52, produced to DIN 3120 / ISO 1174 standards, with mill certificates and SGS reports available.
2. Industry-Leading Drive System Completeness — Quick-release ratchet, L-handle, universal joint, three extension lengths and a cross-drive adapter cover five distinct working conditions, while 22 continuous sockets from 8-32 mm leave no gaps — driving high end-user satisfaction and repeat orders.
3. Genuine Heavy-Duty 1/2″ Construction — The square drive and ratchet mechanism are engineered for heavy-duty service, with torque-to-failure testing confirming real capacity far above rated requirements; the high-tooth-count ratchet is validated by 10,000-cycle fatigue testing.
4. Complete OEM / ODM Service with Flexible Configuration — Custom logo laser engraving or stamping, socket combinations, case colors and layout, color box printing and multilingual manuals. Piece counts can be adapted to your market (22 / 32 / 46 / 82-piece sets in metric, SAE or mixed).
5. Strict QC, Reliable Lead Times and Full After-Sales — ISO 9001 system with 100% completeness inspection, hardness sampling, torque-to-failure testing and salt-spray testing (≥24h). Stock orders ship in 15-20 days, custom orders in 35-50 days. Exported to 60+ countries with free replacement for missing or damaged items.

FAQ



Q1: What is your MOQ and lead time?
A: 1 carton (4 sets) for stock items, shipped within 15-20 days. For custom logo and tool case orders, MOQ is 300 sets with a lead time of about 35-50 days. We accept T/T (30% deposit + 70% balance), L/C at sight, Trade Assurance, Western Union and PayPal (small sample orders).

Q2: What is the difference between 1/2″ and 3/8″ drive, and which should I choose?
A: 1/2″ (12.5 mm) is the heavy-duty standard — a thicker square drive with significantly higher torque capacity, suited to wheel bolts, suspension components, engine mounts, gearboxes, trucks and construction equipment. 3/8″ (10 mm) is the mid-range standard, better for engine bay internals, interior trim and small machinery at lower torque.
This set also includes a 10 mm F × 12.5 mm M adapter, which lets you run your existing 3/8″ sockets on the 1/2″ drive — giving cross-standard versatility and maximizing the value of tools you already own.

Q3: What is included, and how are the adapter and L-handle used?
A: The set contains 22 sockets (8-32 mm), 2 spark plug sockets (16/21 mm), 1 quick-release ratchet, 3 extension bars (75/125/250 mm), 1 universal joint, 1 L-type handle, 1 adapter and 1 × 52 mm screwdriver bit.
Adapter (10 mm F × 12.5 mm M): one end is a 3/8″ female square, the other a 1/2″ male square — fit it to the 1/2″ ratchet and you can use 3/8″ sockets.
L-type handle: solid construction that withstands far higher torque than a ratchet, specifically for breaking loose seized bolts; it also works as a fast-spin handle. Best practice is to break loose with the L-handle and remove with the ratchet — efficient work with a longer tool life.

Q4: What material are the sockets? Is 8-32 mm enough coverage? Will they round off nuts?
A: Sockets are forged from premium chrome-vanadium (CR-V) steel, quenched and tempered to HRC 44-52, with torsional strength meeting DIN/ISO standards — fully capable of heavy-duty work.
The 22 sockets span 8-32 mm continuously (omitting only the rarely used 25, 29 and 31 mm), covering everything from small engine bolts to large wheel nuts and truck chassis fasteners — the ideal size range for a 1/2″ system.
The 6-point socket profile contacts the nut flats over a larger area than a 12-point design, effectively preventing slipping and rounded corners, which is especially valuable on worn or corroded fasteners. Material certificates or SGS/BV third-party testing can be arranged.

Q5: Can the logo, contents and packaging be customized? Is it suitable for industrial procurement or gifting?
A: Absolutely. We offer laser engraving or steel stamping of your logo on the sockets, ratchet and case, plus custom handle and case colors. Socket combinations can be freely adjusted for your market (metric, SAE or mixed, with more or fewer pieces, or added deep sockets and breaker bars). Packaging options include blow-molded case, aluminum case, metal tool box, canvas roll and EVA-lined gift box, with custom color box printing, multilingual manuals, barcodes and hang tags.
The substantial 5.36 kg configuration suits both bulk industrial procurement for repair chains, factories and vocational schools and premium gifting for car brands, motor oil brands and auto parts chains. Samples can be sent first, with the sample charge refunded against a bulk order.
