Product Description

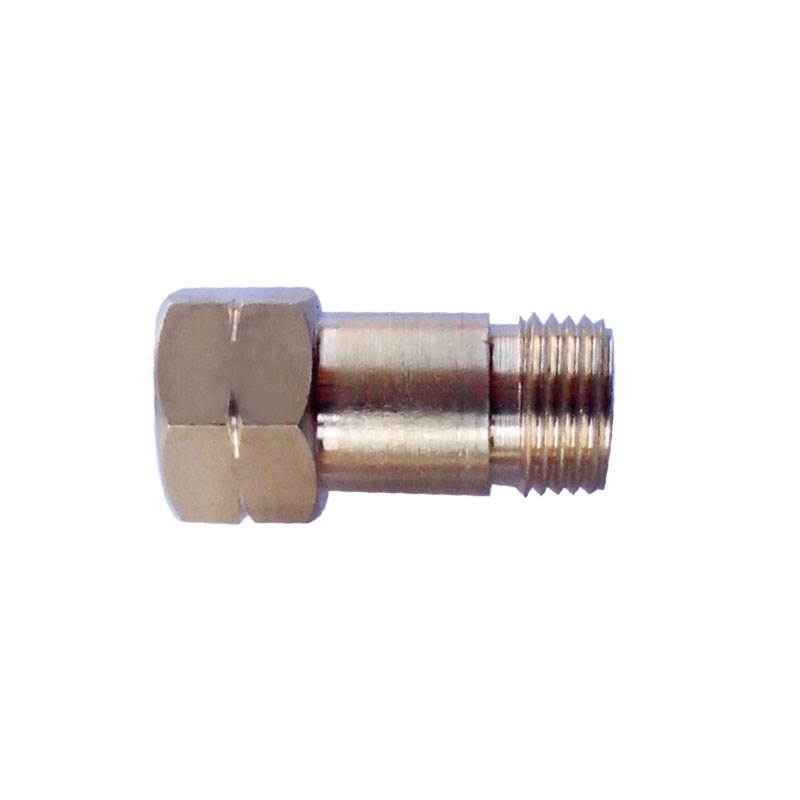

Shangbang acetylene flashback arrestor for torch is made of full copper with overall fine polishing treatment. Specially designed for welding and cutting torches, it is installed at the acetylene gas inlet end of the torch to prevent flashback during operation. It effectively stops reverse flame from traveling back through the gas hose to the acetylene cylinder, protecting operators and equipment — an essential end-of-line safety device for acetylene welding and cutting systems.
Product Features
| English Feature | |
|---|---|
| 1 | All-Copper Construction, Durable & Strong — Precisely forged from high-purity copper with high density and strength, excellent corrosion and high-temperature resistance, not easy to age or deform with long-term use |
| 2 | Overall Fine Polishing — Surface treated with fine polishing process, mirror-smooth with premium feel. High flatness of threaded connection surface for more reliable sealing performance |
| 3 | High-Efficiency Flashback Prevention — Built-in high-precision flame arrester element optimized for acetylene gas characteristics, fast flashback response and high blocking efficiency, instantly blocks flame propagation path, preventing flame from spreading toward the gas source |
| 4 | Torch-Specific Design — Specially designed for the acetylene gas line of welding/cutting torches, with standard universal interface, installed at the torch gas inlet end. Easy to install and perfectly compatible with various standard torches |
| 5 | Acetylene Gas Specific — Optimized design for acetylene’s flammable and explosive characteristics, suitable for acetylene welding, cutting and heating operations with stable and reliable safety performance |
| 6 | Compact & Lightweight, Easy Maintenance — Weighing only 0.12kg per unit, compact and exquisite, does not affect torch handling feel. Standard threaded interface, can be installed and removed by hand, convenient for daily inspection and maintenance |
Specifications
| Parameter | Value |
|---|---|
| Item No. | W62361 |
| Product Name | Acetylene Flashback Arrestor for Torch |
| Applicable Gas | Acetylene |
| Material | All Copper |
| Surface Treatment | Overall Fine Polishing |
| Box Quantity | 1 pc |
| Carton Quantity | 324 pcs |
| Unit Weight | 0.12 kg |
| Function | Prevent Flashback, Block Reverse Flame |
| Installation Position | Torch Acetylene Gas Inlet End |
| Application | Gas Welding, Gas Cutting, Heating Operations |
Applications
- End-of-line safety protection for acetylene-oxygen gas welding and cutting operations
- Use at the acetylene gas inlet end of welding/cutting torches
- Welding workshops in steel structure, shipbuilding and pressure vessel manufacturing
- Automotive repair, sheet metal processing welding stations
- Machinery manufacturing, hardware processing, ironwork production
- Plumbing installation, HVAC repair cutting and welding
- Acetylene welding operations on construction sites and in maintenance workshops
Why Choose Us
- All-Copper Precision Casting, Industrial-Grade Quality — Forged from high-purity copper in one piece with uniform density and excellent air tightness. Overall fine polishing delivers refined appearance and reliable sealing. Service life far exceeds ordinary zinc alloy or iron products.
- Acetylene-Specific Flame Blocking Technology, Safety Guaranteed — Built-in high-precision flame arrester element optimized for acetylene gas, verified by strict flashback testing. Fast response and high blocking efficiency effectively prevent reverse flame from entering gas hoses and sources, eliminating explosion risks at the source.
- Torch-Specific, Wide Compatibility — Designed specifically for torch acetylene gas lines with international standard threaded interface. Perfectly compatible with most welding torch and cutting torch models on the market. Easy installation, reliable sealing, no gas leakage.
- Direct Factory, High Cost Performance — Supplied directly from our own factory, MOQ starts from 324pcs per carton. Better prices for larger quantities. OEM private label customization supported — specifications, packaging and brand identity can be customized per customer requirements.
- Professional Foreign Trade Service Team — Years of experience in welding safety accessories foreign trade, familiar with CE, ISO and other international safety standards. Complete product documentation, technical support and after-sales guarantee provided. Dedicated follow-up throughout the process for a worry-free purchasing experience.
FAQ
Q1: What’s the difference between acetylene and oxygen torch flashback arrestors? Can they be used interchangeably?
A1: They may look similar, but the internal flame arrester elements are optimized for different gas characteristics. NEVER use them interchangeably. The acetylene model (W62361) is designed for acetylene’s flammable and explosive properties, while the oxygen model (W62360) is designed for oxygen’s combustion-supporting properties. Mixing them may reduce flame blocking effectiveness and pose safety risks. Always select the correct model for your gas type.
A1: They may look similar, but the internal flame arrester elements are optimized for different gas characteristics. NEVER use them interchangeably. The acetylene model (W62361) is designed for acetylene’s flammable and explosive properties, while the oxygen model (W62360) is designed for oxygen’s combustion-supporting properties. Mixing them may reduce flame blocking effectiveness and pose safety risks. Always select the correct model for your gas type.
Q2: Do I need to install both torch-side and regulator-side acetylene flashback arrestors?
A2: For optimal safety protection, installing both is recommended. The regulator-side arrestor protects the gas cylinder at the source end, while the torch-side arrestor protects the operator and torch at the working end. Using both together provides dual protection with a higher safety factor than installing just one.
A2: For optimal safety protection, installing both is recommended. The regulator-side arrestor protects the gas cylinder at the source end, while the torch-side arrestor protects the operator and torch at the working end. Using both together provides dual protection with a higher safety factor than installing just one.
Q3: How to choose between all-copper and zinc alloy flashback arrestors?
A3: For safety and durability, all-copper material is the priority choice. All-copper offers better corrosion resistance, high-temperature resistance and air tightness, with a service life several times that of zinc alloy — not prone to aging or gas leakage with long-term use. Zinc alloy is cheaper but has poor stability in high-temperature environments, posing safety risks. Since acetylene is a flammable and explosive gas, industrial-grade all-copper quality is recommended for safety protection products.
A3: For safety and durability, all-copper material is the priority choice. All-copper offers better corrosion resistance, high-temperature resistance and air tightness, with a service life several times that of zinc alloy — not prone to aging or gas leakage with long-term use. Zinc alloy is cheaper but has poor stability in high-temperature environments, posing safety risks. Since acetylene is a flammable and explosive gas, industrial-grade all-copper quality is recommended for safety protection products.
Q4: Is there a specific installation direction for this flashback arrestor?
A4: Yes, there is. When installing, please pay attention to the gas flow direction arrow marking on the product. The arrow should point toward the torch direction (i.e., the direction gas flows from the cylinder to the torch). Reversed installation will affect gas flow and flashback blocking effectiveness, posing safety risks. Please install correctly according to the product manual or arrow marking.
A4: Yes, there is. When installing, please pay attention to the gas flow direction arrow marking on the product. The arrow should point toward the torch direction (i.e., the direction gas flows from the cylinder to the torch). Reversed installation will affect gas flow and flashback blocking effectiveness, posing safety risks. Please install correctly according to the product manual or arrow marking.
Q5: How often should a flashback arrestor be replaced?
A5: Under normal use with no flashback incidents, all-copper flashback arrestors have a long service life. Regular inspection of sealing and flame blocking performance every 6-12 months is recommended. If a flashback has occurred, gas leakage is found, appearance is damaged, or the arrester element is contaminated or aged, replace immediately. Proper use and regular maintenance can effectively extend product life.
A5: Under normal use with no flashback incidents, all-copper flashback arrestors have a long service life. Regular inspection of sealing and flame blocking performance every 6-12 months is recommended. If a flashback has occurred, gas leakage is found, appearance is damaged, or the arrester element is contaminated or aged, replace immediately. Proper use and regular maintenance can effectively extend product life.
