Product Introduction

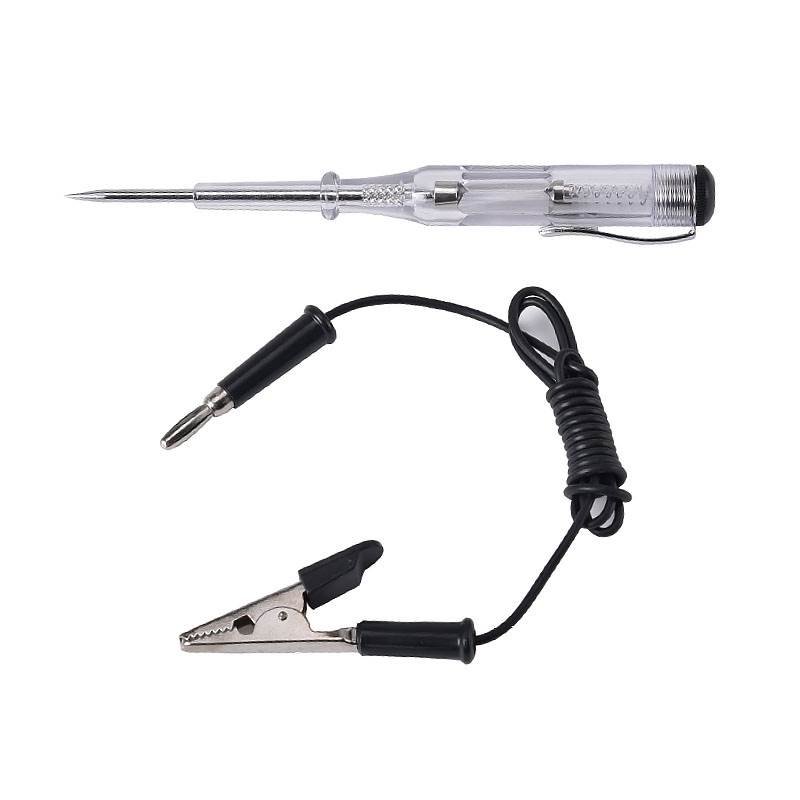

The Automotive Circuit Tester Pen is a professional circuit testing tool designed specifically for low-voltage circuit fault detection in transportation machinery. Its measurement range covers three common vehicle voltage levels: 6V, 12V, and 24V, making it widely applicable for maintenance work on automobiles, motorcycles, bulldozers, road rollers, and other transportation machinery. Precision internal circuitry paired with a highly sensitive indicator light quickly and accurately determines circuit continuity and voltage levels, helping repair technicians rapidly locate circuit faults. The portable pen-style design makes it easy to use—an essential diagnostic tool for auto electricians and vehicle emergency tool kits.
Product Features
1. Wide Voltage Range, Multi-Purpose
Supports testing of three DC voltage levels: 6V, 12V, and 24V, covering the on-board electrical systems of most passenger vehicles, commercial vehicles, and construction machinery. One tester pen handles multiple vehicle types.
Supports testing of three DC voltage levels: 6V, 12V, and 24V, covering the on-board electrical systems of most passenger vehicles, commercial vehicles, and construction machinery. One tester pen handles multiple vehicle types.
2. Highly Sensitive Indication, Quick Diagnosis
Built-in highly sensitive neon/LED indicator light makes circuit continuity instantly clear. Quickly determines positive/negative polarity, voltage levels, and circuit faults, significantly improving repair efficiency.
Built-in highly sensitive neon/LED indicator light makes circuit continuity instantly clear. Quickly determines positive/negative polarity, voltage levels, and circuit faults, significantly improving repair efficiency.
3. Pen-Style Design, Portable & Easy to Use
Pen-shaped appearance with compact size and light weight (only 50g). Fits in a pocket or tool bag for easy carrying. Comfortable grip and flexible operation during use.
Pen-shaped appearance with compact size and light weight (only 50g). Fits in a pocket or tool bag for easy carrying. Comfortable grip and flexible operation during use.
4. Professional Circuit Testing
Designed specifically for low-voltage circuit fault detection in transportation machinery. Tests circuit continuity, fuse condition, bulb circuits, sensor circuits, and more—an indispensable assistant for auto electricians.
Designed specifically for low-voltage circuit fault detection in transportation machinery. Tests circuit continuity, fuse condition, bulb circuits, sensor circuits, and more—an indispensable assistant for auto electricians.
5. Wide Application Range
Suitable not only for automobiles and motorcycles but also for low-voltage circuit testing on bulldozers, road rollers, forklifts, agricultural machinery, and various other transportation and construction equipment.
Suitable not only for automobiles and motorcycles but also for low-voltage circuit testing on bulldozers, road rollers, forklifts, agricultural machinery, and various other transportation and construction equipment.
6. Durable & Rugged
Housing made of high-strength insulating material—shock-resistant and wear-resistant. Probe made of high-quality steel for long-lasting durability. Suitable for complex working environments such as workshops and construction sites.
Housing made of high-strength insulating material—shock-resistant and wear-resistant. Probe made of high-quality steel for long-lasting durability. Suitable for complex working environments such as workshops and construction sites.
Specifications
| Item | Specification |
|---|---|
| Item No. | W40523 |
| Measurement Range | 6V – 12V – 24V (DC) |
| Application | Low-voltage circuit fault detection for transportation machinery |
| Applications | Auto, motorcycle, bulldozer, road roller & other transportation machinery maintenance |
| Box Qty | 12 pcs |
| Carton Qty | 240 pcs |
| Unit Weight | 0.05 kg |
| Gross Weight | 13.00 kg |
Application Scenarios
- Automotive Repair: Automotive circuit fault detection, fuse inspection, lighting circuit testing, sensor circuit diagnosis
- Motorcycle Repair: Motorcycle circuit inspection, battery voltage testing, lighting circuit troubleshooting
- Construction Machinery Repair: Circuit testing for bulldozers, road rollers, forklifts, loaders, and other construction machinery
- Agricultural Machinery Repair: Circuit testing and repair for tractors, harvesters, and other agricultural equipment
- Vehicle Emergency: Keep in the vehicle for quick circuit fault diagnosis and emergency self-repair
- Electrician Daily Use: DC low-voltage circuit testing, battery voltage testing, circuit continuity testing
Why Choose Us
1. Factory Direct, Quality Guaranteed
We operate our own production base with full-process quality control from component procurement to finished product delivery. Every tester pen undergoes strict voltage calibration and insulation testing for stable and reliable quality.
We operate our own production base with full-process quality control from component procurement to finished product delivery. Every tester pen undergoes strict voltage calibration and insulation testing for stable and reliable quality.
2. Three Voltage Levels, Multi-Purpose
Supports three DC voltage levels: 6V-12V-24V, covering the electrical systems of most vehicles and construction machinery. One pen replaces three, lowering procurement costs.
Supports three DC voltage levels: 6V-12V-24V, covering the electrical systems of most vehicles and construction machinery. One pen replaces three, lowering procurement costs.
3. Highly Sensitive & Accurate Detection
Uses high-quality indicator components and precision circuit design for sensitive and accurate testing. Even weak voltages are clearly indicated, helping to quickly locate circuit fault points.
Uses high-quality indicator components and precision circuit design for sensitive and accurate testing. Even weak voltages are clearly indicated, helping to quickly locate circuit fault points.
4. Portable & Lightweight, Carry Anywhere
Pen-style design, only 50g weight. Fits in a pocket, tool bag, or on-board tool kit—always ready to use without taking up space.
Pen-style design, only 50g weight. Fits in a pocket, tool bag, or on-board tool kit—always ready to use without taking up space.
5. Wide Application Range
Suitable not only for conventional vehicles like cars and motorcycles but also for construction machinery such as bulldozers, road rollers, and forklifts—versatile across multiple industries and scenarios.
Suitable not only for conventional vehicles like cars and motorcycles but also for construction machinery such as bulldozers, road rollers, and forklifts—versatile across multiple industries and scenarios.
6. Robust & Durable
High-strength insulating housing—shock-resistant and wear-resistant; high-quality steel probe that resists bending and breaking. Suitable for complex environments like workshops and construction sites, with long service life.
High-strength insulating housing—shock-resistant and wear-resistant; high-quality steel probe that resists bending and breaking. Suitable for complex environments like workshops and construction sites, with long service life.
7. High Value, Customization Supported
Direct factory supply with more competitive pricing. OEM/ODM customization supported, including logo, packaging, and color options to meet brand OEM needs.
Direct factory supply with more competitive pricing. OEM/ODM customization supported, including logo, packaging, and color options to meet brand OEM needs.
FAQ
1. Q: Can this tester pen measure AC voltage?
A: No. This tester pen is designed specifically for DC low-voltage circuits, with a measurement range of 6V-12V-24V DC. It’s mainly used for on-board circuit testing in automobiles and construction machinery, and is not suitable for testing AC voltage.
2. Q: Can it be used to test battery voltage?
A: Yes. This tester pen supports 6V, 12V, and 24V DC voltage testing. It can quickly determine whether a car or motorcycle battery has power and whether the voltage is normal. However, it cannot display specific voltage values—it only indicates circuit continuity and approximate voltage range.
3. Q: How do I use the tester pen?
A: It’s very simple: Clip the tester pen’s clamp to ground (negative), and touch the probe to the circuit being tested. If the indicator light comes on, the circuit is live and positive; if it doesn’t light up, the circuit has no power or is negative/ground.
4. Q: Which vehicle models is it suitable for?
A: It supports 6V, 12V, and 24V DC voltage, suitable for most passenger vehicles (12V), commercial vehicles (24V), motorcycles (6V/12V), and construction machinery like bulldozers and road rollers (12V/24V).
5. Q: What is the unit weight? Is it portable?
A: Only 0.05kg (50g) per unit—very lightweight. The pen-style design makes it easy to carry around, fitting in a pocket or tool bag.
6. Q: Do you support OEM branding? What’s the MOQ?
A: Yes, we support OEM/ODM customization including logo, packaging, and color options. The MOQ varies depending on the customization content. Please contact our sales team for a detailed quote.
7. Q: Is it durable? Does it break easily?
A: The housing is made of high-strength insulating material—shock-resistant and wear-resistant. The probe uses high-quality steel that resists deformation and breaking. Under normal use, it’s very durable and suitable for complex working environments like auto repair shops and construction sites.
