Product Overview

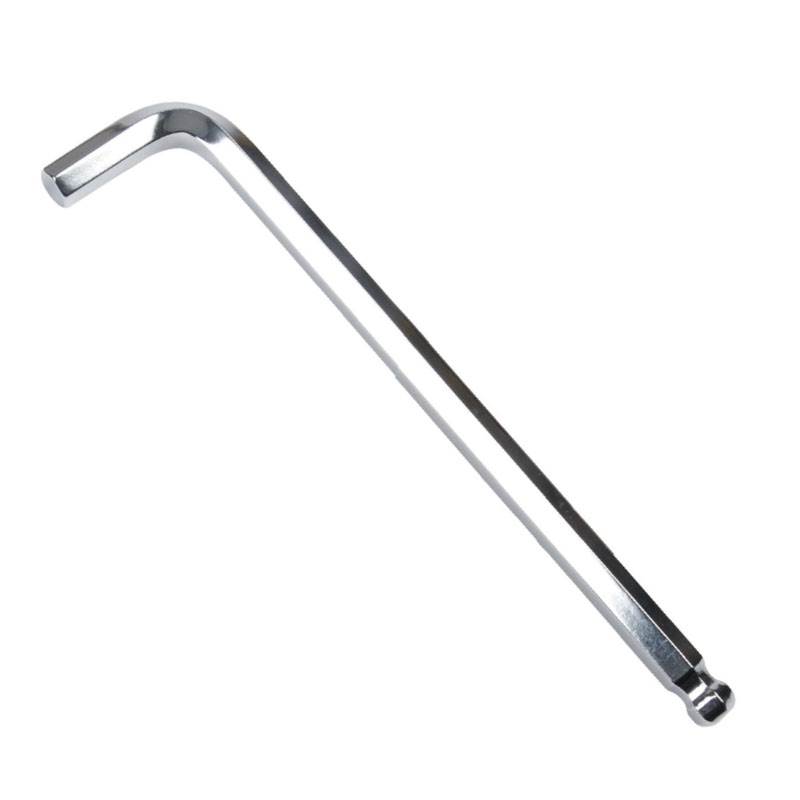

This ball end long-reach hex key wrench is precision-crafted from premium chrome vanadium (Cr-V) steel, fully hardened and tempered for high hardness, superior strength, and excellent toughness — ensuring no slipping or breaking during use. The ball end design enables 25° angled operation, allowing hex screws to be turned from the side in tight spaces or when screws are partially obstructed, greatly increasing operational flexibility. The extended L-arm reaches deep holes and cavities. The other end is a flat head with chamfered tip for quick alignment and insertion. The electroplated surface provides excellent corrosion resistance and a clean, polished appearance. Widely used in automotive repair, machinery assembly, furniture installation, bicycle maintenance, and various tight-space applications.
Key Features
| English Feature | |
|---|---|
| 1 | Premium Cr-V Steel: High-grade chrome vanadium steel for industrial-grade strength, toughness, and durability |
| 2 | Fully Hardened & Tempered: Through-hardening heat treatment ensures uniform hardness, strong torque, no slipping or breaking |
| 3 | 25° Ball End Design: Ball end enables 25° angled operation — easily turn screws in tight and obstructed spaces |
| 4 | Extended Long Arm: Extra-long L-arm reaches deep holes and cavities, superior accessibility |
| 5 | Chamfered Flat Tip: Flat head end is chamfered for quick alignment, smooth insertion, and efficient operation |
| 6 | Plated Finish: Electroplated surface delivers excellent rust and wear resistance with lasting shine and comfortable grip |
| 7 | 15 Complete Sizes: 15 sizes from 1.5mm to 22mm to meet various working requirements |
Product Specifications
| Item No. | W (mm) | L1 (mm) | L2 (mm) | Box Qty | Carton Qty | Unit Weight | G.W. |
|---|---|---|---|---|---|---|---|
| W21100 | 1.5 | 63.5 | 15.5 | 100 pcs | 3,000 pcs | 0.001 kg | 4.80 kg |
| W21101 | 2.0 | 77 | 18 | 100 pcs | 3,000 pcs | 0.002 kg | 8.28 kg |
| W21102 | 2.5 | 87.5 | 20.5 | 100 pcs | 3,000 pcs | 0.004 kg | 13.60 kg |
| W21103 | 3.0 | 93 | 23 | 100 pcs | 3,000 pcs | 0.006 kg | 21.50 kg |
| W21104 | 4.0 | 104 | 29 | 100 pcs | 1,400 pcs | 0.016 kg | 19.60 kg |
| W21105 | 5.0 | 120 | 33 | 100 pcs | 800 pcs | 0.023 kg | 19.20 kg |
| W21106 | 6.0 | 141 | 38 | 80 pcs | 480 pcs | 0.040 kg | 19.20 kg |
| W21108 | 8.0 | 158 | 44 | 60 pcs | 300 pcs | 0.080 kg | 24.50 kg |
| W21110 | 10 | 180 | 50 | 40 pcs | 160 pcs | 0.14 kg | 25.60 kg |
| W21112 | 12 | 202 | 57 | 24 pcs | 96 pcs | 0.23 kg | 22.30 kg |
| W21114 | 14 | 229 | 70 | 8 pcs | 80 pcs | 0.35 kg | 29.00 kg |
| W21117 | 17 | 262 | 80 | 6 pcs | 48 pcs | 0.59 kg | 29.00 kg |
| W21119 | 19 | 284 | 89 | 6 pcs | 24 pcs | 0.80 kg | 20.50 kg |
| W21122 | 22 | 310 | 102 | 6 pcs | 18 pcs | 1.18 kg | 21.40 kg |
Application Scenarios
- Automotive repair (engine bay, chassis tight-space work)
- Machinery assembly and deep-cavity maintenance
- Furniture assembly and repair
- Bicycle/motorcycle repair and adjustment
- Mold repair and adjustment
- Home appliance installation and repair
- Precision electronics assembly
- DIY crafts and home improvement projects
Why Choose Us
-
Direct Factory, Strict Quality Control
With our own production base and comprehensive QC system, every wrench undergoes hardness testing and torque verification from raw material to finished product, ensuring industrial-grade quality standards.
-
Ball End Design — The Tight-Space Solution
The 25° ball end design enables angled operation, working easily in obstructed and tight spaces where flat head wrenches can’t reach — an essential tool for automotive and machinery repair.
-
Premium Cr-V Steel, Built to Last
Made of selected high-quality chrome vanadium steel with full hardening and tempering for uniform hardness and strong torque. Service life far exceeds ordinary carbon steel wrenches, significantly reducing long-term costs.
-
Full Size Range & Customization
15 sizes covering 1.5mm-22mm full range. OEM/ODM services available including laser logo, packaging options, and custom set configurations to meet diverse customer needs.
-
Professional & Efficient Foreign Trade Service
Years of export experience with a dedicated team managing the full order process. We support FOB, CIF, DDP and other trade terms, ensuring safe and on-time delivery to customers worldwide.
FAQ
A: Ball end keys enable 25° angled operation, allowing screws to be turned from the side — ideal for tight spaces and obstructed screw access. Flat head keys provide full contact with the screw, delivering maximum torque without damaging screw edges, better for high-torque applications. This model features both ball end and flat head, giving you two functions in one wrench.
A: When the ball end is aligned straight (0° angle), torque is essentially the same as a flat head. Torque decreases as the angle increases. For high-torque work, use the flat head end with straight alignment. The ball end is ideal for medium-to-low torque tasks where angled access is needed. This model uses fully hardened Cr-V steel for excellent overall strength and torque performance.
A: The long-reach version has longer L1 (long arm) and L2 (short arm) than standard length. For example, 10mm size: standard L1=122mm, long-reach L1=180mm. The long-reach version can reach deeper holes and cavities, suitable for deep-hole and deep-cavity applications.
A: Yes, we provide OEM/ODM services including laser logo, color box packaging, and blister card packaging. The MOQ for standard individual items is 1,000 pieces, and 500 sets for wrench sets. Contact our sales team for specifics.
A: Standard in-stock sizes ship within 1-3 business days. Custom orders typically take 15-30 days depending on quantity and specifications. We offer sea freight, air freight, and international express, with trade terms including FOB, CIF, and DDP.
