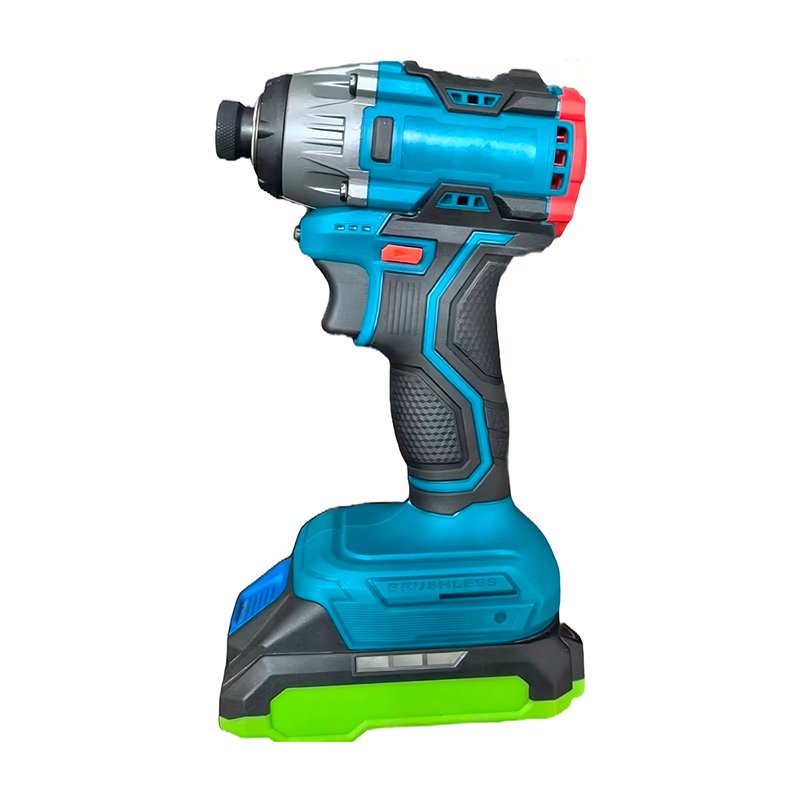

The PL180-20 brushless impact driver is a professional cordless tool designed for demanding fastening applications. Its high-performance brushless motor delivers up to 180N.m of maximum torque, making it suitable for high-tensile bolts, large fasteners, machinery assembly and heavy-duty maintenance.
With three speed settings, the brushless impact driver gives users better control in different working conditions. The 6.35mm (1/4-inch) hex quick-change chuck also allows fast and convenient bit changes.
It is ideal for steel structure installation, heavy machinery assembly, automotive repair, equipment maintenance and industrial applications.
|
English Features |
| 1 |
180N.m Ultra-High Torque — professional-grade power for high-tensile bolts and heavy fasteners |
| 2 |
3-Speed Smart Control — speed and impact rate perfectly matched for precision, efficiency and maximum power |
| 3 |
Brushless Motor Technology — high efficiency, long lifespan, maintenance-free, stable and reliable for heavy-duty continuous work |
| 4 |
High Speed & Impact Rate — up to 2500rpm and 3500BPM for doubled fastening efficiency |
| 5 |
1/4″ Hex Quick-Change Chuck — one-hand bit loading for fast and convenient operation |
| 6 |
Forward/Reverse Switch — effortless switching between tightening and loosening |
| 7 |
Built-in LED Work Light — illuminates the work area in dark or confined spaces |
| 8 |
Compact Body + Ergonomic Grip — soft non-slip rubber reduces vibration and fatigue during extended use |
| Parameter |
Value |
| Model |
PL180-20 |
| Motor Type |
Brushless |
| Drive Type |
Impact Drive |
| Max Torque |
180N.m |
| Torque Settings |
3-speed |
| Speed 1 |
1200 rpm |
| Speed 2 |
1900 rpm |
| Speed 3 |
2500 rpm |
| Impact Rate 1 |
1400 BPM |
| Impact Rate 2 |
1800 BPM |
| Impact Rate 3 |
3500 BPM |
| Output Spindle |
6.35mm (1/4″) Hex quick-change |
| Forward/Reverse |
Yes |
| LED Work Light |
Yes |
|
English |
| Steel Structure Engineering |
Workshop construction, bridge assembly, steel bolting, large space frame assembly |
| Heavy Machinery Assembly |
Construction equipment, mining equipment installation, shipbuilding, heavy truck repair |
| Automotive Repair |
Chassis work, suspension bolt removal, engine bay work, tire service |
| Industrial Maintenance |
Factory equipment overhaul, production line maintenance, pipeline flange bolting |
| Electrical Work |
HV/LV distribution panel assembly, cable tray installation, switchgear installation |
| Construction |
Scaffolding assembly, formwork fixing, curtain wall installation, metal structure welding support |
Why Choose the PL180-20?
Professional 180N.m Torque
The 180N.m maximum torque provides strong fastening performance for demanding applications. Compared with standard 140N.m models, the PL180-20 offers 28% higher maximum torque.
Reliable Brushless Motor
The brushless motor provides efficient operation, reduced maintenance and a longer working life. It is a practical choice for professional users who need reliable cordless power tools.
Experienced Tool Manufacturer
Shangbang Tools has more than 10 years of experience in power tool and hand tool manufacturing. The company exports products to more than 80 countries and supports professional tool sourcing for international customers.
Complete Tool Product Range
In addition to brushless impact drivers, we offer more than 60 models of sockets, wrenches, automotive tools and other workshop products. This allows buyers to source multiple tool categories from one supplier.
OEM and ODM Support
Private labeling, custom packaging and torque specification customization are available. Flexible MOQ options can also support different sourcing and branding requirements.
Battery and Charging
The PL180-20 brushless impact driver comes with two high-capacity lithium-ion batteries.
According to testing specifications, a single fully charged battery can fasten approximately 400 M10 standard bolts. With two batteries, the total capacity can reach approximately 800 bolts, depending on operating conditions and fastening requirements.
The batteries support fast charging, reaching approximately 80% capacity in 30 minutes and a full charge in about 60 minutes.
Q1: What is the difference between the PL180-20 and a 140N.m impact driver?
A1: The main difference is maximum torque and fastening performance. The PL180-20 brushless impact driver provides up to 180N.m of torque, compared with 140N.m for standard models.The higher torque makes it more suitable for professional repair, steel structure installation and heavy equipment assembly. A 140N.m model can be sufficient for general assembly and lighter repair work.
Q2: What are the three speed settings used for?
A2: The three speed settings provide different levels of speed and impact performance. 1200rpm and 1400BPM for precision fastening and smaller screws. 1900rpm and 1800BPM for general assembly and medium-size bolts. 2500rpm and 3500BPM for larger bolts and high-speed fastening applications.
This three-speed system gives users better control over different fastening tasks.
Q3: How long does the battery last?
A3:The PL180-20 comes with two high-capacity lithium-ion batteries. Based on the provided testing specification, one battery can fasten approximately 400 M10 standard bolts under the specified test conditions. Actual battery life can vary depending on bolt size, material, fastening torque, operating speed and working conditions.
Q4: Can the 1/4-inch hex chuck use sockets?
A4:Yes. The tool includes a 1/4-inch hex to 3/8-inch square adapter, allowing users to work with compatible 3/8-inch drive sockets. The 1/4-inch hex chuck can also accept standard 1/4-inch hex shank bits, extensions and bit holders.
Q5: What is the difference between an impact driver and an impact wrench?
A5:The main difference is the output drive and typical application. A brushless impact driver usually uses a 1/4-inch hex drive and is commonly used with screwdriver bits, fasteners and smaller bolts. An impact wrench normally uses a square drive, such as 1/2-inch or 3/4-inch, and is designed for larger nuts and bolts. Impact wrenches are commonly used for automotive wheel nuts, heavy machinery and high-torque applications. In simple terms, choose an impact driver for versatile fastening and screwdriving tasks. Choose an impact wrench when you need a larger square drive and higher torque for heavy-duty nuts and bolts.
