Product Introduction

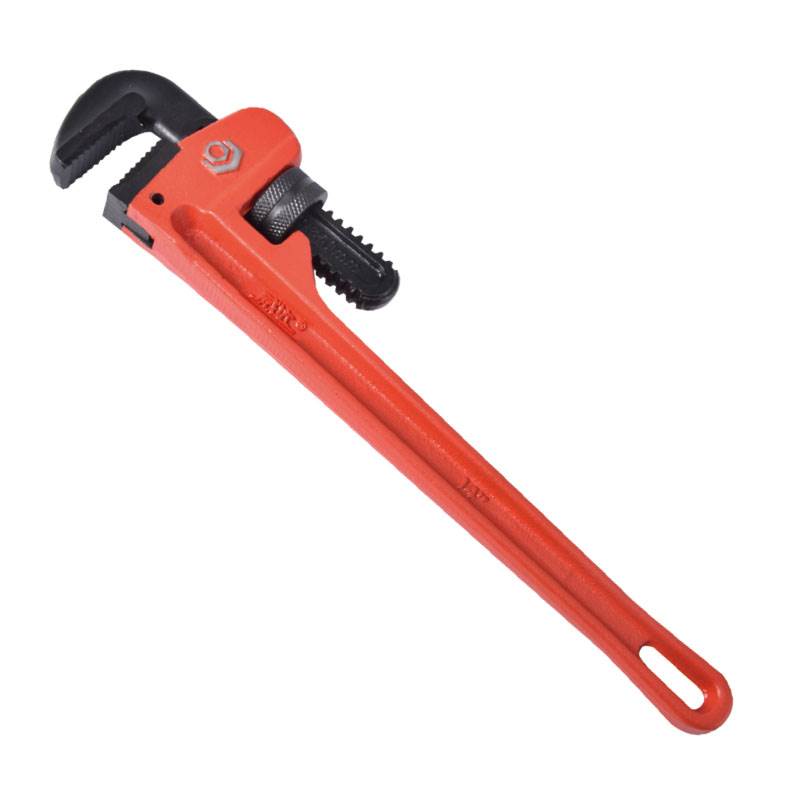

The New-Style Heavy-Duty Pipe Wrench is an industrial-grade plumbing and pipeline tool engineered for demanding heavy-duty applications across oil & gas, municipal waterworks, petrochemical plants, and heavy construction sites.
Unlike standard malleable iron wrenches, the handle and main body are cast from high-tensile ductile iron, providing exceptional resistance to cracking and bending under extreme leverage. Both the hook jaw and heel jaw are forged from premium #60 carbon steel, undergoing full-body heat treatment with high-frequency induction-hardened teeth achieving a hardness of HRC 55–60. For maximum structural stability, models sized 600mm (24″) and above utilize a reinforced riveted fixed jaw design, preventing jaw dislocation or loosening during high-torque operations. Available in sizes from 250mm (10″) up to 1200mm (48″) with a maximum clamping diameter of 145mm, this wrench is built to tackle the toughest threaded pipe connections.
Product Features
| Feature | Description |
|---|---|
| High-Tensile Ductile Iron Body | Cast from high-grade ductile iron delivering significantly higher tensile strength and fatigue resistance compared to traditional malleable iron, effectively preventing body fracture under extreme torque. |
| Premium #60 Steel Forged Jaws | Both movable (hook) and fixed (heel) jaws are forged from high-quality #60 steel and overall heat-treated for supreme toughness and structural integrity. |
| High-Frequency Hardened Teeth (HRC 55–60) | Precision machined teeth undergo high-frequency induction hardening to achieve HRC 55–60 hardness, delivering aggressive bite force, zero slippage, and outstanding anti-wear longevity. |
| Riveted Fixed Jaw Design (600mm+) | Models sized 600mm (24″) and larger feature heavy-duty riveted fixed jaw architecture, ensuring the heel jaw remains permanently locked in place without loosening under heavy industrial leverage. |
| Smooth Precision Adjustment Nut | Features a self-cleaning, knurled adjusting nut for fast one-handed jaw opening adjustments and smooth sliding along the hook jaw thread. |
| Full Range of Industrial Sizes | Available in 8 standard sizes from 250mm (10″) to 1200mm (48″), catering to pipe diameters ranging from 42mm up to 145mm. |
Technical Specifications
(Data directly mapped from factory datasheet)
| Item No. | Model Code | Size | Max Clamping Dia. | Fixed Jaw Type | Inner Box / CTN | Unit Net Wt. | Gross Wt. |
|---|---|---|---|---|---|---|---|
| W37131 | WG-01B-10 | 250 mm (10″) | 42 mm | Standard Standard | 2 pcs / 36 pcs | 0.52 kg | 20.00 kg |
| W37132 | WG-01B-12 | 300 mm (12″) | 52 mm | Standard Standard | 2 pcs / 24 pcs | 0.82 kg | 21.00 kg |
| W37133 | WG-01B-14 | 350 mm (14″) | 55 mm | Standard Standard | 2 pcs / 12 pcs | 1.09 kg | 14.00 kg |
| W37134 | WG-01B-18 | 450 mm (18″) | 68 mm | Standard Standard | 1 pc / 12 pcs | 1.75 kg | 22.30 kg |
| W37135 | WG-01B-24 | 600 mm (24″) | 85 mm | Riveted | 1 pc / 8 pcs | 2.60 kg | 21.70 kg |
| W37136 | WG-01B-30 | 750 mm (30″) | 102 mm | Riveted | 1 pc / 6 pcs | 3.50 kg | 22.30 kg |
| W37137 | WG-01B-36 | 900 mm (36″) | 110 mm | Riveted | 1 pc / 4 pcs | 4.70 kg | 19.90 kg |
| W37138 | WG-01B-48 | 1200 mm (48″) | 145 mm | Riveted | – / 2 pcs | 7.80 kg | 16.10 kg |
Application Scope
- Oil & Gas Pipelines: Threaded steel pipe connection, drilling rig maintenance, wellhead fittings, and refinery line installation.
- Municipal Waterworks & Utilities: Heavy-duty iron pipe laying, underground main line repair, valve installation, and fire hydrant connections.
- Chemical & Process Engineering: High-pressure steam pipe servicing, flange bolting assistance, and industrial fluid conduit installation.
- Shipbuilding & Marine Engineering: Shipyard pipe laying, ballast system piping, and marine diesel engine fuel line maintenance.
- Heavy Construction & Mining: Structural pipe scaffolding, dewatering pipe installation, and heavy machinery hydraulic pipe repair.
Why Choose Us
- Ductile Iron vs. Malleable Iron: We strictly use high-tensile ductile iron for wrench bodies, providing vastly superior tensile strength and fracture resistance compared to cheaper malleable iron competitors.
- True #60 High-Carbon Steel Jaws: While others use standard carbon steel, our jaws are forged from high-grade #60 steel and hardened to HRC 55–60 for anti-slip bite force and long service life.
- Engineered Riveted Structure for Large Sizes: Models 600mm (24″) and above feature heavy-duty riveted fixed jaws, eliminating jaw wobble or pull-out under extreme lever loads.
- Complete Size Portfolio: From lightweight 10″ (250mm) maintenance wrenches to massive 48″ (1200mm) pipeline monsters, we supply every size with consistent quality control.
- Direct Manufacturer OEM / ODM Support: Direct factory wholesale pricing, customized handle coating colors, private brand logo laser/printing, and export packaging solutions.
FAQ
Q1: What is the main advantage of a Ductile Iron handle compared to standard malleable iron?
A: Ductile iron has spheroidal graphite microstructures, giving it significantly higher tensile strength and yield strength than malleable iron. It can absorb heavy impact and extreme bending forces without snapping, making it far safer for heavy-duty pipeline applications.
Q2: Why are the teeth hardened to HRC 55–60?
A: Pipe wrenches rely on sharp teeth to bite into round, unthreaded steel pipes. A hardness of HRC 55–60 guarantees that the jaw teeth are harder than the steel pipes being turned, ensuring an aggressive anti-slip bite without the teeth flattening or dulling over time.
Q3: Why do models 600mm (24″) and larger feature a riveted fixed jaw design?
A: Larger wrenches (24″, 30″, 36″, 48″) generate immense rotational torque. Traditional pressed-in fixed jaws can loosen or twist out of alignment under extreme force. A riveted design uses heavy-gauge steel rivets to permanently pin the heel jaw to the ductile body, guaranteeing maximum structural rigidity.
Q4: What is the maximum clamping diameter of the largest 1200mm (48″) model?
A: The 1200mm (48″) model (W37138 / WG-01B-48) offers a maximum jaw opening diameter of 145 mm, capable of gripping large-bore steel pipes up to 5 inches in nominal diameter.
Q5: Can we customize our handle brand logos, powder-coating colors, and packaging for OEM orders?
A: Yes. We offer comprehensive OEM/ODM services. We can customize the electrostatic powder-coating handle color (RAL / Pantone matching), stamp or laser-etch your brand logo on the body, and provide custom master carton packaging.
