Pneumatic Impact Socket Manufacturer | 1/2″, 3/4″, 1″ Air Impact Sockets Wholesale – Professional Hardware Tools Manufacturer & Supplier

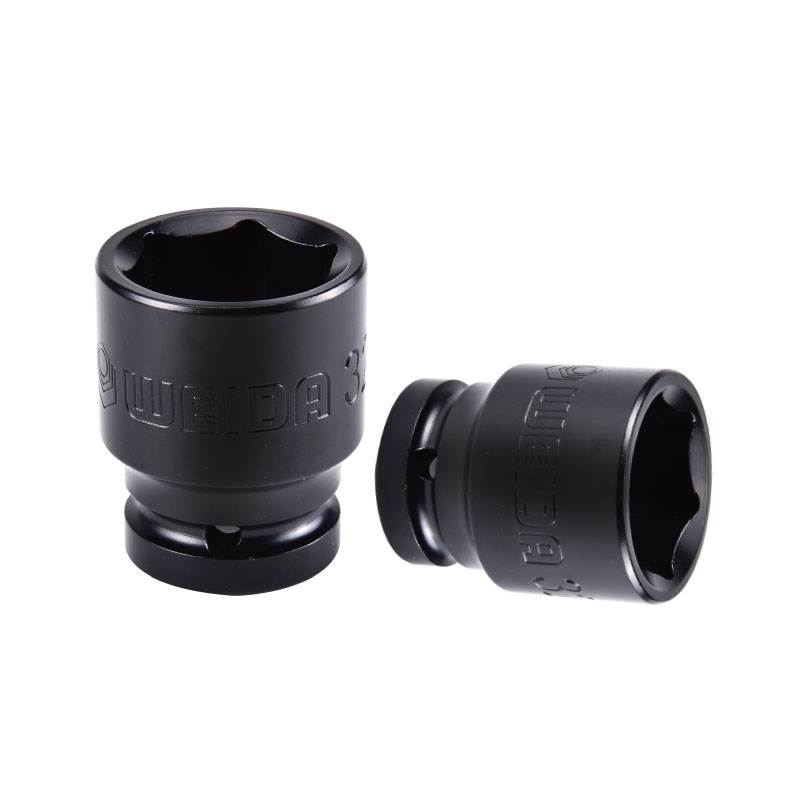

Pneumatic Impact Sockets Product Description

Our pneumatic impact sockets are designed for high-torque impact applications and are widely used with air impact wrenches, pneumatic tools, automotive repair equipment, truck service tools, industrial assembly systems, mining equipment, and construction machinery maintenance.

Made from high-grade alloy material, these air impact sockets are stronger and more durable for repeated heavy-duty use. The surface is treated by electrophoresis and polishing, giving the sockets a cleaner appearance while improving corrosion resistance and reducing rust. This helps extend the service life of each socket.

With special processing, the stamped size markings are clearer and easier to identify, helping users improve efficiency during operation, storage, and sorting.

Our product range includes:

12.5 mm series (1/2″ drive)
20 mm series (3/4″ drive)
25 mm series (1″ drive)

These impact sockets are suitable for wholesale, distribution, project purchasing, and OEM/ODM customization.

Key Features

Made from high-grade alloy steel/material
Strong and durable for impact applications
Electrophoresis polished surface for better appearance and corrosion resistance
Not easy to rust, helping extend product life
Clear stamped markings for easy size identification
Available in multiple drive sizes and metric sizes
Suitable for export packaging, wholesale, and custom branding

Specification Overview

1/2″ Drive / 12.5 mm Series: 8 mm to 32 mm, length 38 mm to 44 mm
3/4″ Drive / 20 mm Series: 17 mm to 70 mm, length 50 mm to 85 mm
1″ Drive / 25 mm Series: 36 mm to 75 mm, length 65 mm to 100 mm

Full Specifications

1/2″ Drive Pneumatic Impact Sockets

Part No.	Size	Length	Box Qty	Carton Qty	Unit Weight	G.W.
W51308	8 mm	38 mm	12 pcs	240 pcs	0.06 kg	16.26 kg
★W51309	9 mm	38 mm	12 pcs	240 pcs	0.06 kg	15.86 kg
W51310	10 mm	38 mm	12 pcs	240 pcs	0.06 kg	15.60 kg
W51311	11 mm	38 mm	12 pcs	240 pcs	0.06 kg	17.20 kg
W51312	12 mm	38 mm	12 pcs	240 pcs	0.07 kg	17.98 kg
W51313	13 mm	38 mm	12 pcs	240 pcs	0.07 kg	18.50 kg
W51314	14 mm	38 mm	12 pcs	240 pcs	0.07 kg	19.00 kg
W51315	15 mm	38 mm	12 pcs	240 pcs	0.08 kg	20.00 kg
W51316	16 mm	38 mm	12 pcs	240 pcs	0.07 kg	18.60 kg
W51317	17 mm	38 mm	12 pcs	240 pcs	0.09 kg	23.20 kg
W51318	18 mm	38 mm	12 pcs	240 pcs	0.09 kg	24.66 kg
W51319	19 mm	38 mm	12 pcs	240 pcs	0.09 kg	22.00 kg
★W51320	20 mm	38 mm	12 pcs	72 pcs	0.12 kg	9.70 kg
W51321	21 mm	38 mm	12 pcs	72 pcs	0.09 kg	6.70 kg
W51322	22 mm	38 mm	12 pcs	72 pcs	0.12 kg	9.40 kg
W51323	23 mm	38 mm	12 pcs	72 pcs	0.12 kg	12.90 kg
W51324	24 mm	38 mm	12 pcs	72 pcs	0.13 kg	9.84 kg
★W51325	25 mm	42 mm	12 pcs	72 pcs	0.21 kg	14.80 kg
★W51326	26 mm	42 mm	12 pcs	72 pcs	0.21 kg	13.30 kg
W51327	27 mm	43 mm	12 pcs	72 pcs	0.16 kg	12.00 kg
★W51328	28 mm	44 mm	12 pcs	72 pcs	0.24 kg	19.80 kg
★W51329	29 mm	44 mm	12 pcs	72 pcs	0.24 kg	19.40 kg
W51330	30 mm	44 mm	12 pcs	72 pcs	0.18 kg	14.00 kg
W51332	32 mm	44 mm	12 pcs	72 pcs	0.21 kg	15.20 kg

3/4″ Drive Pneumatic Impact Sockets

Part No.	Size	Length	Box Qty	Carton Qty	Unit Weight	G.W.
W52317	17 mm	50 mm	8 pcs	48 pcs	0.29 kg	15.5 kg
W52318	18 mm	50 mm	8 pcs	48 pcs	0.29 kg	15.5 kg
W52319	19 mm	50 mm	8 pcs	48 pcs	0.30 kg	16.0 kg
★W52320	20 mm	50 mm	8 pcs	48 pcs	0.30 kg	16.0 kg
W52321	21 mm	50 mm	8 pcs	48 pcs	0.30 kg	16.0 kg
W52322	22 mm	50 mm	8 pcs	48 pcs	0.32 kg	16.5 kg
★W52323	23 mm	50 mm	8 pcs	48 pcs	0.33 kg	17.0 kg
W52324	24 mm	50 mm	8 pcs	48 pcs	0.33 kg	17.0 kg
★W52325	25 mm	52 mm	8 pcs	48 pcs	0.34 kg	17.5 kg
★W52326	26 mm	52 mm	8 pcs	48 pcs	0.35 kg	18.5 kg
W52327	27 mm	52 mm	8 pcs	48 pcs	0.35 kg	18.5 kg
★W52328	28 mm	52 mm	4 pcs	32 pcs	0.37 kg	13.0 kg
★W52329	29 mm	52 mm	4 pcs	32 pcs	0.37 kg	14.0 kg
W52330	30 mm	52 mm	4 pcs	32 pcs	0.44 kg	15.0 kg
★W52331	31 mm	55 mm	4 pcs	32 pcs	0.44 kg	15.5 kg
W52332	32 mm	55 mm	4 pcs	32 pcs	0.46 kg	16.0 kg
W52333	33 mm	57 mm	4 pcs	32 pcs	0.48 kg	16.5 kg
W52334	34 mm	57 mm	4 pcs	32 pcs	0.50 kg	17.0 kg
★W52335	35 mm	57 mm	4 pcs	32 pcs	0.51 kg	17.5 kg
W52336	36 mm	57 mm	4 pcs	32 pcs	0.54 kg	18.5 kg
W52338	38 mm	57 mm	4 pcs	32 pcs	0.58 kg	19.5 kg
W52340	40 mm	63 mm	2 pcs	16 pcs	0.65 kg	11.5 kg
W52341	41 mm	63 mm	2 pcs	16 pcs	0.66 kg	11.5 kg
★W52343	43 mm	63 mm	2 pcs	16 pcs	0.68 kg	12.0 kg
★W52345	45 mm	68 mm	2 pcs	16 pcs	0.75 kg	13.0 kg
W52346	46 mm	68 mm	2 pcs	16 pcs	0.78 kg	13.5 kg
★W52348	48 mm	68 mm	2 pcs	16 pcs	0.81 kg	14.0 kg
W52350	50 mm	72 mm	2 pcs	16 pcs	0.84 kg	14.5 kg
★W52352	52 mm	72 mm	/	10 pcs	0.90 kg	10.0 kg
W52355	55 mm	75 mm	/	10 pcs	1.10 kg	12.0 kg
★W52358	58 mm	77 mm	/	10 pcs	1.30 kg	14.0 kg
W52360	60 mm	77 mm	/	10 pcs	1.50 kg	16.0 kg
W52365	65 mm	85 mm	/	10 pcs	1.85 kg	19.0 kg
W52370	70 mm	85 mm	/	10 pcs	2.19 kg	22.50 kg

1″ Drive Pneumatic Impact Sockets

Part No.	Size	Length	Box Qty	Carton Qty	Unit Weight	G.W.
W53336	36 mm	65 mm	1 pc	30 pcs	0.80 kg	25.00 kg
W53338	38 mm	65 mm	1 pc	30 pcs	0.83 kg	26.00 kg
W53341	41 mm	70 mm	1 pc	20 pcs	0.86 kg	19.00 kg
W53346	46 mm	70 mm	1 pc	20 pcs	1.36 kg	28.20 kg
W53350	50 mm	75 mm	1 pc	20 pcs	1.14 kg	24.00 kg
W53355	55 mm	80 mm	1 pc	20 pcs	1.37 kg	29.00 kg
★W53358	58 mm	82 mm	1 pc	12 pcs	1.41 kg	18.50 kg
W53360	60 mm	82 mm	1 pc	12 pcs	1.55 kg	20.00 kg
W53365	65 mm	87 mm	1 pc	12 pcs	1.88 kg	24.00 kg
W53370	70 mm	94 mm	1 pc	8 pcs	2.48 kg	21.00 kg
W53375	75 mm	100 mm	1 pc	8 pcs	2.90 kg	24.50 kg

Why Choose Us

1. Wide Size Range

We offer a complete range from 8 mm to 75 mm, covering 1/2″, 3/4″, and 1″ drive impact sockets for different markets and applications.

2. Reliable Material and Surface Treatment

Our sockets are made from high-grade alloy material and finished with electrophoresis and polishing for a better balance of strength, durability, and corrosion resistance.

3. Clear Size Identification

The specially processed stamped markings are easy to read, which helps improve efficiency in warehouse handling, sales, and daily use.

4. OEM/ODM Support

We support custom logo, custom packaging, and label customization based on your market needs.

5. Export-Friendly Supply

Suitable for importers, wholesalers, hardware distributors, tool brands, and industrial buyers looking for stable supply and professional packing.

6. Fast Response

We can provide product recommendations and quotations based on your target market, required sizes, and packaging requirements.

FAQ

Q1: What is the difference between a pneumatic impact socket and a regular socket?

A: Pneumatic impact sockets are designed for impact tools and high-torque working conditions. They are stronger and better suited for repeated heavy-duty use.

Q2: What drive sizes are available?

A: We mainly offer 12.5 mm (1/2″), 20 mm (3/4″), and 25 mm (1″) drive series.

Q3: Do you offer less common sizes?

A: Yes. Models marked with ★ are less common sizes. Please contact us for stock confirmation or customization options.

Q4: What industries are these sockets suitable for?

A: They are widely used in automotive repair, truck maintenance, equipment installation, construction machinery, mining machinery, and industrial maintenance.

Q5: Do you support OEM or customized packaging?

A: Yes. OEM branding, packaging customization, and label customization are available based on your requirements.

Q6: Are samples available?

A: Samples can usually be arranged depending on the model and quantity. Please contact us for details.

Q7: What is your MOQ?

A: MOQ depends on the size, packaging method, and whether customization is required. Please send us your inquiry for an exact offer.

Q8: How do I choose the right pneumatic impact socket?

A: You can choose based on the drive size, nut size, torque requirement, and working application. If you are not sure, just send us your usage scenario and we can recommend suitable models.

Call to Action

If you are looking for a reliable supplier of pneumatic impact sockets, air impact sockets, or industrial impact sockets, feel free to contact us for the latest catalog, quotation, OEM solution, and sample support.
