Product Description

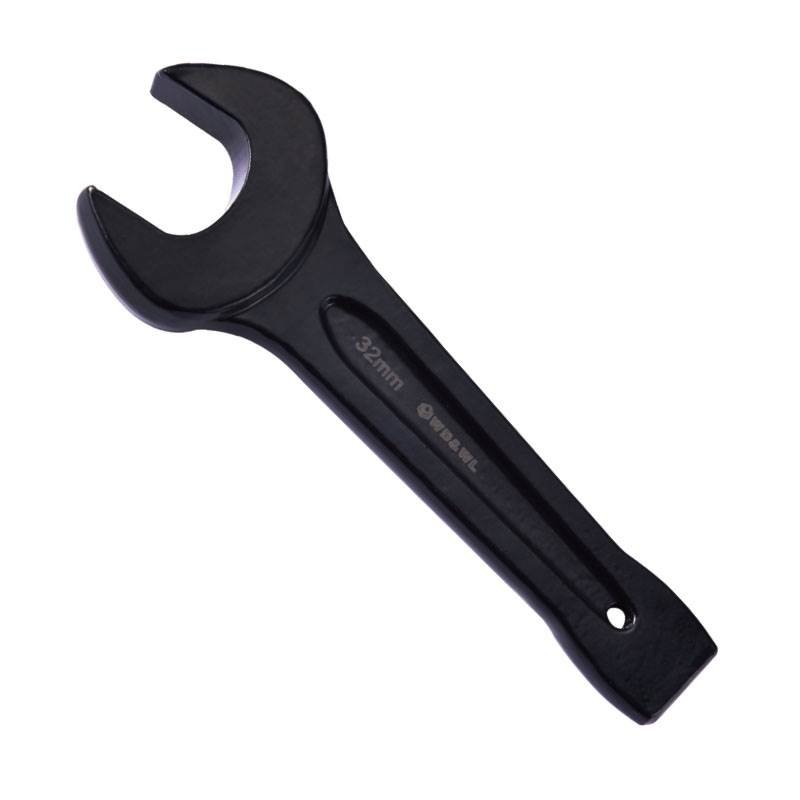

This striking open-end wrench is forged from high-quality alloy steel with a thick, heavy-duty structure designed for large fasteners and high-torque maintenance work. The reinforced striking end can be hit with a hammer or sledgehammer to deliver additional impact force and torque, helping loosen or tighten large, rusted, seized, or difficult fasteners.
The wrench features a phosphated surface finish for good rust resistance, corrosion protection, and wear durability. Its open jaw allows quick side access to large hex nuts, bolts, flange fasteners, and valve connections. It is especially suitable for pipelines, industrial valves, construction machinery, steel structures, shipbuilding, mining, and energy equipment maintenance.
Available from 22mm to 120mm, this heavy-duty striking wrench is manufactured to DIN standard requirements and is an essential hand tool for industrial installation, maintenance, and repair work.
Features
- Forged Alloy Steel: Made from high-quality alloy steel for a thick, strong, impact-resistant body suitable for heavy-duty use.
- Striking End Design: Reinforced handle end can be struck with a hammer to increase force and torque for large fasteners.
- Large Open Jaw: Allows quick side access to oversized hex nuts, bolts, flanges, and industrial connections.
- Phosphated Rust-Resistant Finish: Phosphate treatment improves rust resistance, corrosion protection, and wear durability.
- DIN Standard Compliance: Manufactured according to DIN standard requirements for consistent industrial use.
- Heavy-Duty Torque Applications: Suitable for rusted, long-installed, or high-torque fasteners.
- Wide Size Range: Available in large sizes from 22mm to 120mm.
Specifications
| Item No. | Size | Wrench Length (L) | Head Width (W) | Carton Qty. | Unit Weight | Gross Weight |
|---|---|---|---|---|---|---|
| W16223 | 22 mm | 164 mm | 51 mm | 50 pcs | 0.28 kg | 15.00 kg |
| W16225 | 24 mm | 164 mm | 51 mm | 50 pcs | 0.28 kg | 15.00 kg |
| W16228 | 27 mm | 178 mm | 56 mm | 40 pcs | 0.41 kg | 17.40 kg |
| W16231 | 30 mm | 190 mm | 70 mm | 40 pcs | 0.60 kg | 25.00 kg |
| W16233 | 32 mm | 190 mm | 70 mm | 40 pcs | 0.60 kg | 25.00 kg |
| W16235 | 34 mm | 210 mm | 74 mm | 20 pcs | 0.80 kg | 17.00 kg |
| W16237 | 36 mm | 210 mm | 74 mm | 20 pcs | 0.80 kg | 17.00 kg |
| W16239 | 38 mm | 210 mm | 74 mm | 20 pcs | 0.80 kg | 17.00 kg |
| W16242 | 41 mm | 230 mm | 85 mm | 20 pcs | 1.12 kg | 23.40 kg |
| W16247 | 46 mm | 250 mm | 95 mm | 20 pcs | 1.40 kg | 29.00 kg |
| W16251 | 50 mm | 255 mm | 106 mm | 10 pcs | 1.64 kg | 17.40 kg |
| W16256 | 55 mm | 270 mm | 117 mm | 10 pcs | 1.97 kg | 20.70 kg |
| W16261 | 60 mm | 305 mm | 129 mm | 5 pcs | 2.66 kg | 14.30 kg |
| W16266 | 65 mm | 305 mm | 129 mm | 5 pcs | 2.66 kg | 14.30 kg |
| W16271 | 70 mm | 335 mm | 150 mm | 5 pcs | 3.90 kg | 20.50 kg |
| W16276 | 75 mm | 335 mm | 150 mm | 5 pcs | 3.90 kg | 20.50 kg |
| W16281 | 80 mm | 380 mm | 167 mm | 5 pcs | 5.60 kg | 29.00 kg |
| W16286 | 85 mm | 380 mm | 167 mm | 5 pcs | 5.60 kg | 29.00 kg |
| W16291 | 90 mm | 380 mm | 180 mm | 5 pcs | 5.20 kg | 27.00 kg |
| W16296 | 95 mm | 380 mm | 180 mm | 5 pcs | 5.20 kg | 27.00 kg |
| W16301 | 100 mm | 410 mm | 190 mm | 5 pcs | 6.20 kg | 32.00 kg |
| W16306 | 105 mm | 410 mm | 190 mm | 5 pcs | 6.20 kg | 32.00 kg |
| W16311 | 110 mm | 465 mm | 200 mm | 3 pcs | 8.30 kg | 25.90 kg |
| W16316 | 115 mm | 465 mm | 205 mm | 3 pcs | 8.50 kg | 26.50 kg |
| W16321 | 120 mm | 490 mm | 225 mm | 3 pcs | 12.00 kg | 37.00 kg |
Applications
This striking open-end wrench is suitable for:
- Oil, gas, petrochemical, and refinery equipment maintenance
- Industrial pipelines, valves, flanges, and large connection installation
- Construction machinery, mining machinery, and heavy equipment repair
- Shipbuilding, offshore engineering, and port equipment servicing
- Wind power, thermal power, hydropower, and energy facility maintenance
- Steel structures, bridges, tunnels, and large construction projects
- Railway, rail transit, and heavy vehicle repair
- Factory equipment installation, production line maintenance, and mechanical workshops
- Large nuts, bolts, flange fasteners, and industrial connections
Why Choose Us
Heavy-Duty Striking Structure
Thick wrench body and reinforced striking end are designed for large fasteners and high-torque maintenance requirements.
Forged Alloy Steel Quality
Premium alloy steel provides strength, toughness, and impact resistance for demanding industrial conditions.
DIN Standard Manufacturing
Produced in accordance with DIN standard requirements for consistent specifications and reliable engineering procurement.
Phosphated Rust Protection
Phosphated surface treatment improves rust and corrosion resistance for humid, outdoor, and industrial environments.
Complete Large Size Range
Available from 22mm to 120mm, covering a wide range of industrial nuts, flanges, valves, and heavy-duty connections.
Flexible OEM/ODM Support
Custom logos, specifications, finishes, packaging, and project tool sets are available for distributors, brands, and industrial buyers.
FAQ
Q1: What is a striking open-end wrench?
A1: A striking open-end wrench is a heavy-duty wrench with an open jaw and a striking end. The striking end can be hit with a hammer to apply additional impact force and torque for loosening or tightening large fasteners.
Q2: What fasteners is it suitable for?
A2: It is suitable for large hex nuts, bolts, flange fasteners, valve connections, and heavy-duty industrial fasteners.
Q3: Does this product meet DIN standards?
A3: Yes. The image information states that this product complies with DIN standards, making it suitable for industrial maintenance and engineering procurement.
Q4: What is the advantage of phosphate treatment?
A4: Phosphate treatment improves rust resistance, corrosion protection, and wear durability, making the tool suitable for outdoor, humid, and industrial conditions.
Q5: Can it be used on rusted or seized nuts?
A5: Yes, it is suitable for common rusted or high-torque fasteners. For severely seized fasteners, use penetrating lubricant and follow appropriate procedures, such as using specialized torque tools or controlled heating where permitted.
Q6: What safety precautions should be taken?
A6: Select the correct wrench size and ensure the jaw fully engages the fastener. Strike only the designated striking end with a suitable hammer. Wear safety glasses and gloves, avoid side loading, and do not exceed the tool’s safe working capacity.
Q7: Do you support customization?
A7: Yes. OEM/ODM customization is available for sizes, lengths, logos, phosphate colors, packaging, and heavy-duty wrench set configurations.
OEM / ODM (Optional)
We offer flexible OEM / ODM services:
- Custom Dimensions: Jaw size, wrench length, head width, thickness, and striking-end structure can be customized.
- Custom Branding: Laser engraving, steel stamping, screen printing, ink printing, labels, and private-label packaging.
- Custom Surface Finishes: Black phosphate, black oxide, sandblasting, chrome plating, pearl nickel, and more.
- Custom Packaging: Hang cards, plastic holders, fabric pouches, color boxes, tool cases, and printed cartons.
- Custom Industrial Sets: Common sizes from 22mm to 120mm can be configured into sets for petrochemical, pipeline, mining, or heavy equipment maintenance.
- Sampling and Mass Production: Support for drawing-based or sample-based development, sample approval, and stable bulk supply.
Please send us your size list, drawings, branding artwork, samples, or project requirements for a customized solution.
